Compression Curb Stops
$155.64 – $1,233.92

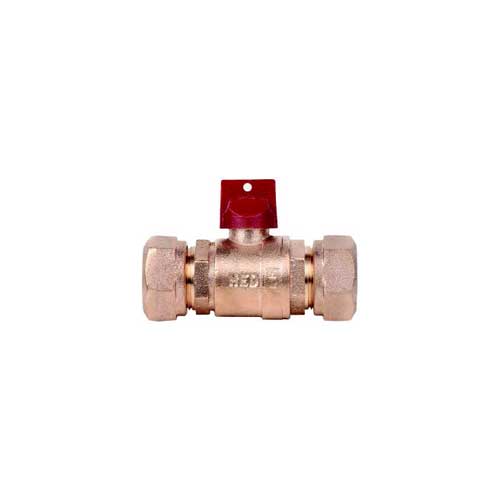

Red Hed Ball Curb Stops are precision machined to ensure watertight integrity. They have full-size waterways and heavy castings. They are manufactured from lead-free bismuth brass CDA No. C89833. Valves are repeatedly inspected and hydrostatically tested to 300 psi.
NOTE: Stainless steel insert stiffeners are required for use with plastic tubing (CTS) (compression ends only). Optional handle is available for above ground operation.
- Additional information
- Available Sizes
- Features
Additional information
| Size | 1″, 1-1/4”, 1-1/2”, 2”, 3/4” |
|---|---|
| Direction to Open | Left (counterclockwise), Right (clockwise) |
| Inlet | 1-1/2” Compression, 1-1/4” Compression, 1” Compression, 2” Compression, 3/4” Compression |
| Outlet | 1-1/2” Compression, 1-1/4” Compression, 1” Compression, 2” Compression, 3/4” Compression |
| Product Number | Size | Direction To Open | Inlet | Outlet |
|---|---|---|---|---|
| RHSB41511 | 3/4” | Left (counterclockwise) | 3/4” Compression | 3/4” Compression |
| RHSB41512 | 1″ | Left (counterclockwise) | 1” Compression | 1” Compression |
| RHB41513 | 1-1/4” | Left (counterclockwise) | 1-1/4” Compression | 1-1/4” Compression |
| RHB41514 | 1-1/2” | Left (counterclockwise) | 1-1/2” Compression | 1-1/2” Compression |
| RHB41515 | 2” | Left (counterclockwise) | 2” Compression | 2” Compression |
| RHSB41611 | 3/4” | Right (clockwise) | 3/4” Compression | 3/4” Compression |
| RHSB41612 | 1” | Right (clockwise) | 1” Compression | 1” Compression |
| RHB41613 | 1-1/4” | Right (clockwise) | 1-1/4” Compression | 1-1/4” Compression |
| RHB41614 | 1-1/2” | Right (clockwise) | 1-1/2” Compression | 1-1/2” Compression |
| RHB41615 | 2” | Right (clockwise) | 2” Compression | 2” Compression |
- Manufactured to ANSI/AWWA C800 Standards
- 80 durometer Neoprene rubber seats that seal in both directions
- Full port clear waterway in all sizes
- Double “O” ring stem seals • Full lead free brass ball, teflon coated for easy turning
- Open left or right, ¼ turn operation with stop, clearly marked T-head L or R
- Tee-Head Secured with Stainless steel retaining pin (¾” -1″ only)
- All components of the valve manufactured from Lead Free Brass, Casting Stamped “LF”
- Dovetail stem and ball design (1¼”-2″)
